Also known as a manual sheet leveler or manual metal straightener, manual leveling machines are widely used to remove bends, waves, and other uneven areas from metal sheets across different industries. However, incorrect roller settings, poor alignment, worn parts, and a lack of maintenance can lead to uneven sheets, surface marks, and feeding issues. Some manual leveling machine problems you show know firstly. Proper machine safety and maintenance procedures help reduce equipment-related hazards and align with international standards such as ISO 12100 Machine Safety Guidelines and OSHA General Industry Regulations.
Unlike a Hydraulic Leveling Machine or a CNC Leveling Machine, a manual leveling machine can be difficult to fix when the actual cause of a problem is not identified. Knowing how to troubleshoot and perform proper machine upkeep can save hours of downtime. Here is your complete guide on how to fix sheet metal leveling machine problems and maintain your equipment for long-term performance.
7 Common Manual Leveling Machine Problems and How to Fix Them
1. Uneven or Inconsistent Sheet Leveling
One of the most frequent manual leveling machine problems is uneven leveling, where portions of the sheet remain bent or wavy after passing through the rollers. This usually happens when pressure is not spread evenly or roller gap settings fail to match the material thickness.
- How to Fix: Check the roller gap and pressure settings to ensure they match the specific metal sheet thickness. Perform a manual plate leveler roller alignment troubleshooting check: if rollers are misaligned, calibrate them so equal pressure is applied across the entire width. Always run a small test sheet before full-scale production. To ensure consistent precision across production batches, verify your output against industry flatness tolerance standards such as ASTM A480/A480M Specifications.
2. Sheet Bending or Warping After Leveling
If a metal sheet develops a new bend or retains its original warp after processing, incorrect pressure is the primary culprit. Too much pressure creates new bends, while insufficient pressure fails to straighten the metal.
- How to Fix: To resolve plate roller leveling machine precision loss, adjust the roller pressure based on material hardness and thickness before processing more sheets. Ensure the sheet enters the entry point straight—poor entry alignment disrupts proper pressure distribution. According to metal straightening principles highlighted by The FABRICATOR, precise entry-to-exit pressure gradient adjustment is critical to avoid internal stress accumulation.
3. Sheet Feeding Problems
When a sheet slips, jams, moves off-center, or fails to pass smoothly through the rollers, you are dealing with a sheet metal straightener jamming or feeding issue.
- How to Fix: To correct feeding issues, check sheet alignment before insertion. Clean the rollers thoroughly and inspect them for wear that might reduce grip. Adjust the roller pressure so it firmly grips without crushing the material, and keep the feeding platform free of debris.
4. Surface Marks, Scratches, or Dents on Sheets
Scratches, lines, or dents on finished sheets degrade product quality and cause material waste. This is typically caused by metal shavings on dirty rollers, damaged roller surfaces, or excessive clamping pressure.
- How to Fix: Inspect rollers immediately when marks appear. Clean off dirt and small metallic particles. Check for rough spots or cracks on the roller surface. If the rollers are undamaged, reduce the operating pressure to the minimum required level for effective leveling.
5. Rollers Not Turning Smoothly
Rollers that stick or rotate unevenly cause fluctuating pressure, inconsistent sheet movement, and poor leveling accuracy. This stems from dirt accumulation, mechanical binding, or lack of proper lubrication.
- How to Fix: Stop the machine and inspect the drive mechanism. Remove debris and inspect gears and bearings. Apply appropriate industrial lubricants to all moving parts according to manufacturer specifications. Replace worn bearings or damaged drive components if smooth rotation cannot be restored.
6. Excessive Machine Vibration or Noise
Sudden increases in operational noise or strong machine vibrations indicate underlying mechanical stress or loose components.
- How to Fix: Inspect the machine frame for loose bolts, fasteners, and mounting hardware. Verify that the unit is on a level floor and check roller alignment. If unusual noise persists after tightening loose parts, halt operation to inspect internal bearings and gears before major failure occurs.
7. Leveling Results Change During Production
If the machine produces flat sheets initially but output quality degrades over time, the issue usually relates to thermal expansion, shifting manual adjustments, or roller wear.
- How to Fix: Ensure material thickness and sheet hardness remain consistent across batches. Re-check lock nuts on roller adjustment mechanisms to prevent settings from drifting during operation. Conduct regular quality checks throughout the production run to catch deviations early.
Standard Operating Procedure: Manual Leveling Machine Maintenance Guide
To prevent sudden breakdowns and extend the lifespan of your machine, follow this standard manual leveling machine maintenance guide.
Daily Maintenance Checklist
- Clean Rollers: Wipe down all leveling rollers with a clean cloth and approved solvent to remove oil, metal dust, and debris.
- Visual Inspection: Inspect rollers for visible scratches, cracks, or foreign material before starting a shift.
- Test Alignment: Verify entry guides and feeding tables are clear and properly aligned.
Weekly Maintenance Checklist
- Lubrication: Apply industrial grease matching NLGI Consistency Grades or ISO 6743 Lubricant Classifications to bearings, adjustment screws, and drive gears to prevent premature friction wear.
- Fastener Check: Tighten all loose bolts, nuts, and set screws on the machine body and roller housings.
- Calibration Check: Perform a how to calibrate manual sheet metal leveler test using a standard gauge block to confirm zero-point accuracy across all adjustment handles.
Periodic & Preventive Upkeep
- Roller Wear Assessment: Periodically measure roller concentricity and diameter. Replace worn rollers when uneven pressure can no longer be corrected manually.
- Drive System Inspection: Check drive chains and belts for proper tension and signs of wear.
Conclusion
Most manual leveling machine problems—from uneven sheets and feeding jams to surface scratches and excessive noise—can be traced back to incorrect settings, roller wear, or neglected maintenance. By following systematic troubleshooting steps and adhering to a strict daily maintenance schedule, operators can maintain high sheet accuracy and minimize costly production downtime.

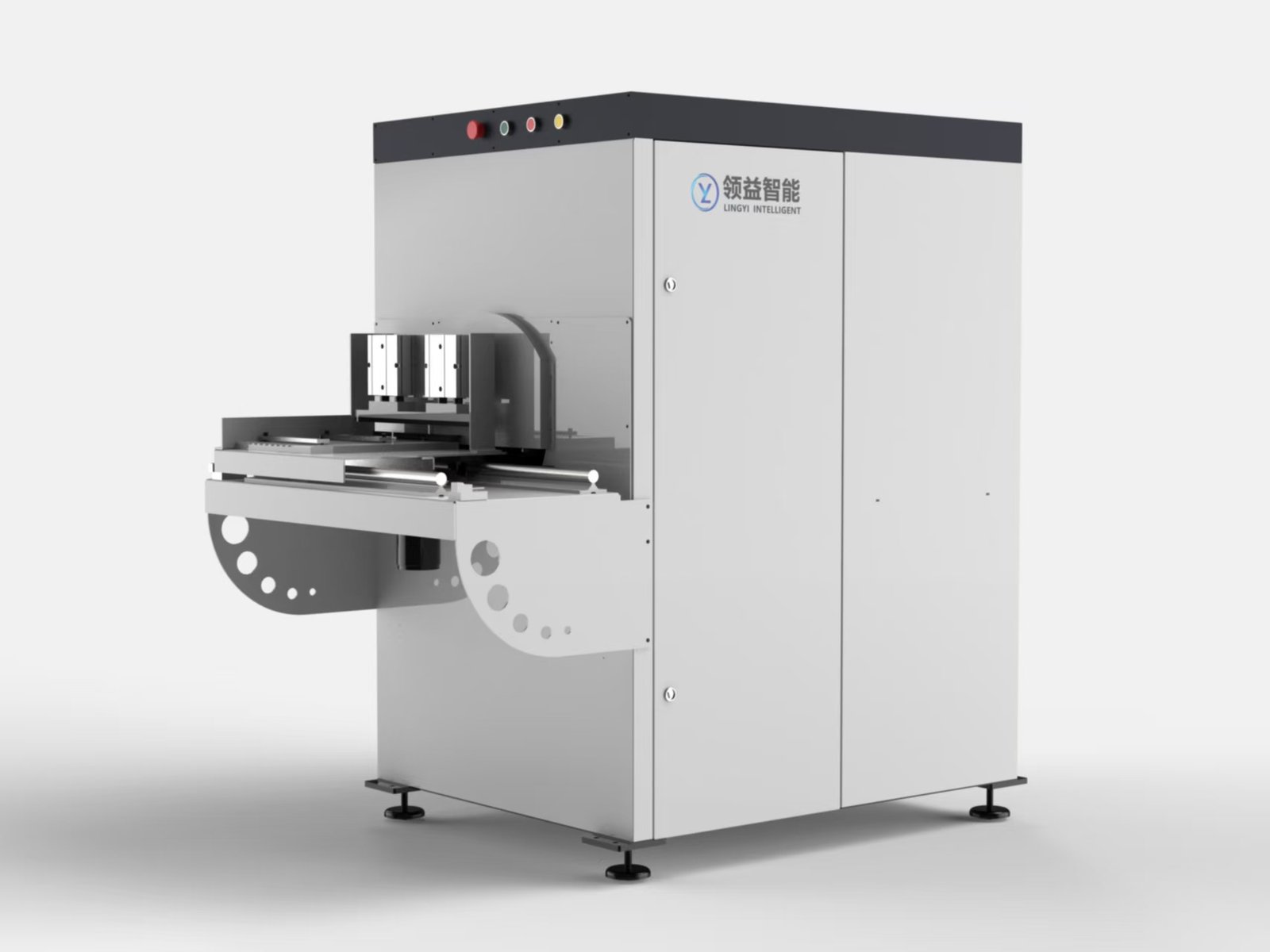

Are you looking to upgrade your production line with high-precision sheet leveling equipment? Dongguan Lingyi Intelligent Machine Co., Ltd offers high-quality leveling machines engineered for maximum accuracy, durability, and consistent performance across diverse industrial applications.
Frequently Asked Questions
Q1. What are the most common manual leveling machine problems?
The most frequent issues include uneven sheet leveling, sheet warping, feeding jams, surface scratches, sticking rollers, excessive noise or vibration, and inconsistent results across production runs.
Q2. How do you perform proper manual leveling machine maintenance?
Follow a routine schedule: clean rollers daily to prevent surface marks, lubricate bearings and adjustment screws weekly, check and calibrate roller alignment regularly, and replace worn components promptly.
Q3. What are the key differences between a manual leveling machine and an automatic leveling machine?
A manual leveling machine relies on operators to measure sheet thickness and manually adjust handwheels for pressure and gap settings. An automatic or CNC leveling machine uses digital sensors, automated controls, and motorized actuators to calculate and adjust parameters automatically.
Q4. Why does a manual sheet leveler produce wavy or uneven sheets?
Uneven sheets typically result from improper roller gap settings, misaligned rollers applying unequal pressure across the sheet width, worn roller surfaces, or feeding sheets at an angle.
Q5. How often should a manual metal straightener be inspected?
Perform a quick visual check and roller cleaning daily before operation. Conduct a comprehensive inspection—including fastener tightness, gear lubrication, and precision calibration—on a weekly to monthly basis depending on usage volume.
Q6. What happens if you run a leveling machine with worn rollers?
Using worn rollers causes uneven pressure distribution, leading to poor flatness tolerances, frequent material jamming, surface scratches on metal sheets, and accelerated wear on drive bearings.
