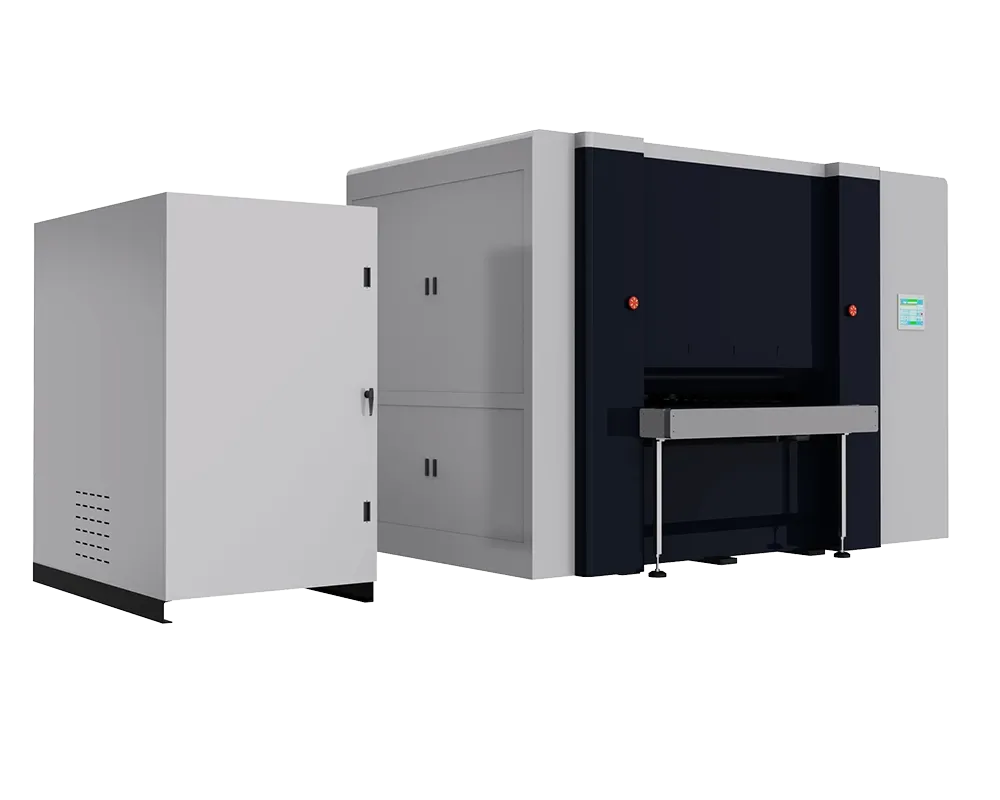

Precision Hydraulic Leveling Machines: Built for High-Volume Sheet Processing
When sheet metal flatness is critical to product quality, advanced leveling technology is non-negotiable. Engineered specifically to meet the high standards of growing manufacturing sectors—including demanding production lines across India—our Hydraulic Leveling Machine delivers uncompromised accuracy, high processing speeds, and long-term operational stability.
Seamlessly integrating with automated CNC Leveling Machine systems, it ensures a continuous workflow while effectively relieving internal material stress. The result is flawless, ultra-flat sheet surfaces across every batch. From automotive body panels and heavy structural plates to high-precision components, our equipment guarantees consistent precision with minimal operator intervention—maximizing downstream throughput and overall efficiency.
Looking for versatile solutions? For lighter-gauge metals, prototyping, or custom short runs, explore our Manual Leveling Machine and fully automated CNC systems—tailored to deliver extreme accuracy for all your sheet processing needs.
Not sure which model fits your material thickness?
| Model | LYC10 | LYC20 | LYC30 | LYC40 | LYC50 | LYC60 | LYC80 | LYC100 | LYC120 |
|---|---|---|---|---|---|---|---|---|---|
| Roller Diameter | 10 | 20 | 30 | 40 | 50 | 60 | 80 | 100 | 120 |
| Roller Number | 31 | 25 | 23 | 21 | 19 | 19 | 19 | 19 | 19 |
| Level Speed | 10m/min | 10m/min | 10m/min | 10m/min | 10m/min | 10m/min | 10m/min | 10m/min | 10m/min |
| Pass Width | <150 | <200 | <1500 | <1500 | <1500 | <1500 | <2000 | <2000 | <2000 |
| Thickness Range (Q235) | 0.05–0.8 | 0.08–1.0 | 0.3–1.2 | 0.6–3.0 | 0.8–4.0 | 1.0–6.0 | 2.0–8.0 | 3.0–10.0 | 4.0–12.0 |
| Shortest Workpiece | 20mm | 40mm | 60mm | 80mm | 100mm | 120mm | 150mm | 180mm | 200mm |
| Optional | Four/Six-Layers | Conveyor Tables | Manipulators | Support Roller Adjustment | Automatic Detection Platform | ||||||||

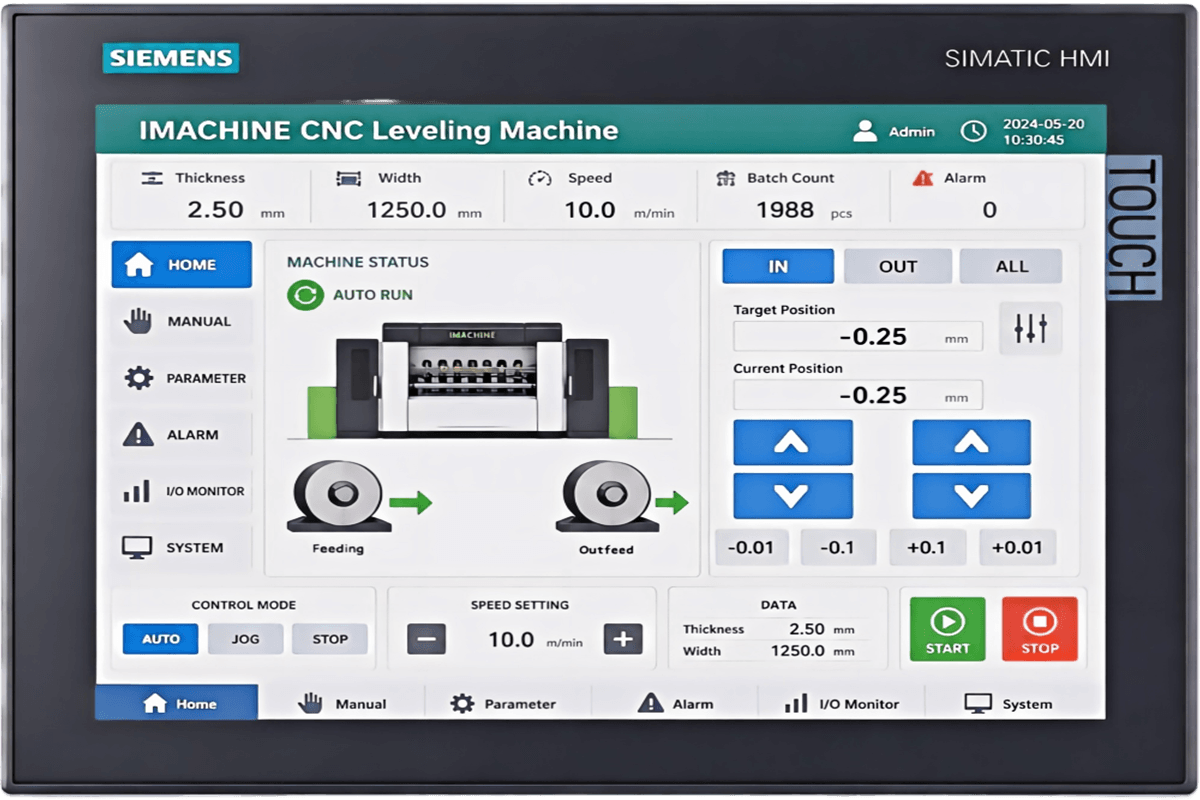

Equipped with an advanced Automatic Hydraulic Control System, our machine monitors and adjusts pressure in real time. The precision servo-hydraulics eliminate thermal distortion and internal material stress, maintaining uniform flatness across batches without requiring frequent manual recalibration.

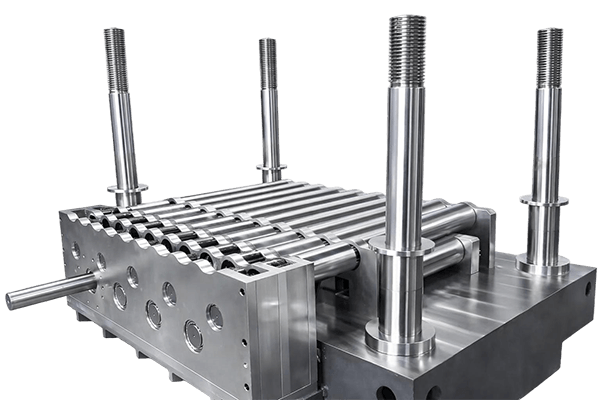

Featuring a multi-roller configuration, the machine achieves an exceptional flatness accuracy of up to 0.3 mm/m. By completely removing residual stress and wave deformations, it delivers superior surface finish for raw sheets (0.3 mm to 80 mm)—ensuring seamless performance in downstream laser cutting, robotic welding, and precision bending.
Integrated with an Intelligent Pressure Feedback System, the hydraulic unit optimizes force output based on material thickness and resistance. This dynamic power distribution reduces overall energy consumption by up to 30%, significantly lowering your long-term operational costs.

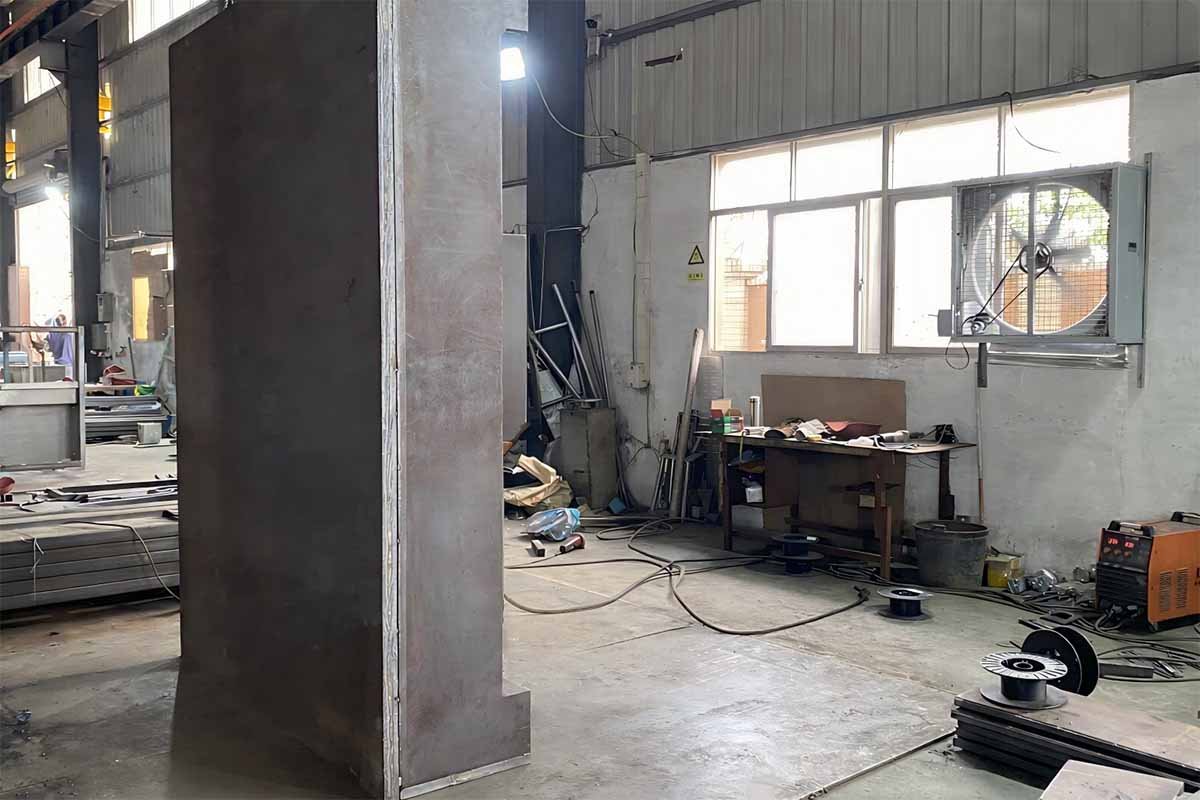

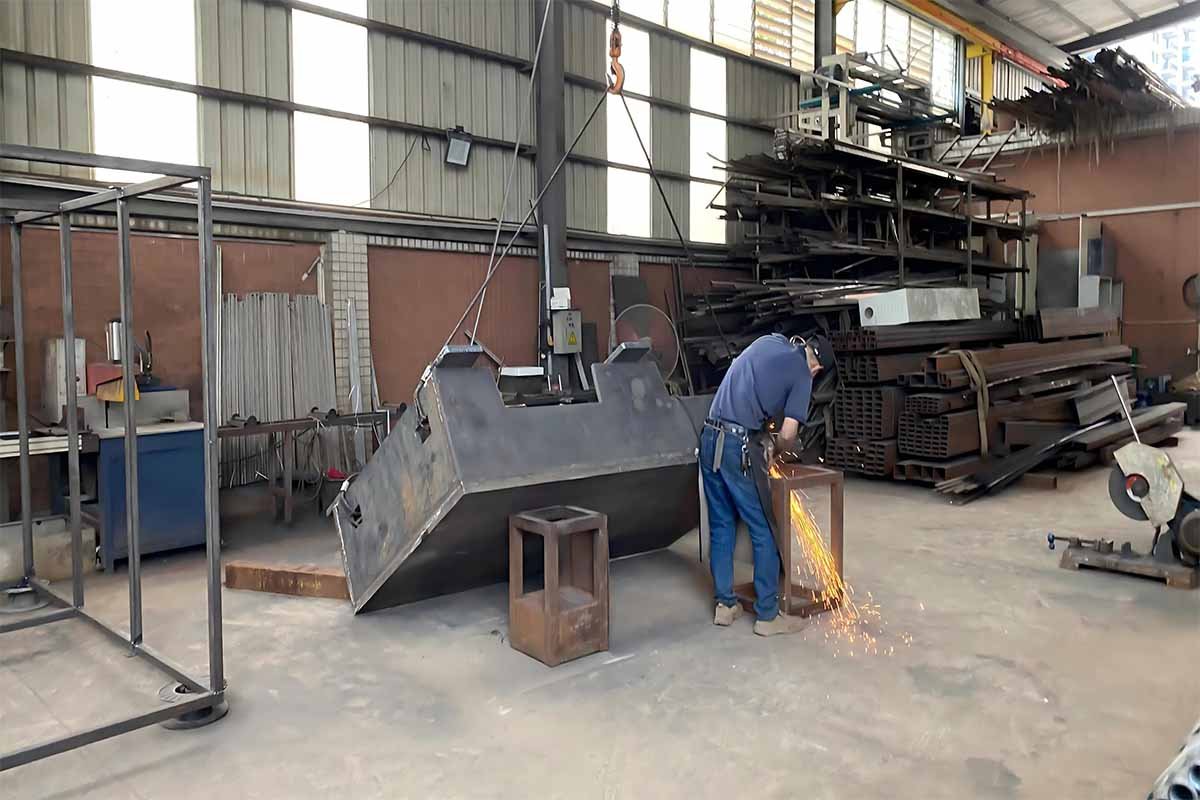

Built for high-volume manufacturing environments, our machine features a reinforced heavy-duty frame, hardened alloy rollers, and a vibration-resistant structure. It ensures continuous, high-load operation with minimal deflection and maximum mechanical stability.
With automatic feeding integration, quick changeover features, and responsive hydraulic roller adjustments, setup times are drastically reduced—increasing overall single-shift production output by up to 40%.
Engineered for modern smart factories and high-mix production environments, this hydraulic leveling machine integrates effortlessly into automated CNC workflows. By supplying ultra-flat, tension-free metal sheets to downstream CNC laser cutters, punch presses, and robotic bending cells, it eliminates material warping, prevents equipment collision, and maximizes automated throughput across your entire manufacturing ecosystem.
Delivering high-consistency flatness to global suppliers of critical machinery components.
From automotive stamping to high-tolerance aerospace and semiconductor component fabrication, top-tier precision parts manufacturers depend on our hydraulic leveling systems to eliminate internal stress, protect tight tolerances, and reduce scrap rates.
Dynamically adjusts pressure in real time to guarantee uniform flatness across diverse sheet materials and batches.
Employs progressive multi-roller technology to process sheets from 0.3 mm to 80 mm, neutralizing internal stress completely.
Delivers high-repeatability flatness tolerance down to 0.3 mm per meter, eliminating scrap and downstream fitment issues.
Continuously monitors resistance and optimizes power output, cutting total energy consumption by up to 30%.
Features quick-adjust rollers that drastically reduce setup times when transitioning between material types and sheet thicknesses.
Built with a heavy-duty, anti-vibration steel chassis for maximum rigid stability during 24/7 high-load industrial operations.

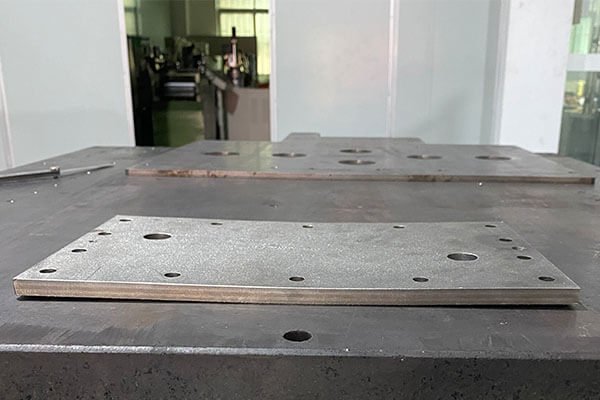

Stress-relieved, perfectly flat sheets guarantee seamless downstream cutting, punching, and welding—minimizing material waste and costly rework.
Integrated automatic feeding and quick-changeover mechanisms eliminate line idle time, significantly increasing finished output per shift.
Uniform, high-precision flatness across all sheet gauges guarantees reliable part geometry and trouble-free assembly every single time.
Servo-hydraulic energy efficiency cuts power usage by up to 30%, while automated controls drastically reduce reliance on manual labor.
As a premier hydraulic leveling machine manufacturer, imachine delivers rugged, high-precision leveling solutions built to conquer the most demanding industrial challenges worldwide.
Build an optimized, bottleneck-free workshop ecosystem around your hydraulic leveler.
Invest in uncompromised precision, energy-efficient hydraulic power, and long-term durability. Partner with us to eliminate sheet stress, lower processing costs, and scale your manufacturing output.
As a global market leader in precision leveling technology, Lingyi provides the world’s widest range of high-performance precision roller levelers—spanning delicate thin-gauge parts, heavy structural plates, and high-strength armored steel.
Shipbuilding & Marine Engineering: To resolve severe hull plate deformation caused by welding and transport, Lingyi innovated a specialized heavy-plate leveling solution. This technology eliminates internal stress, guarantees tight assembly tolerances, and preserves the vessel’s structural strength and navigational safety.
Precision Sheet Metal Processing: With extensive experience across diverse metal alloys, varying thicknesses, and complex geometries, Lingyi provides fully customized leveling configurations to meet strict market demands and ensure zero-defect downstream fabrication.
Got questions about our hydraulic leveling technology? Find answers from our engineering experts below.
Answer: Our hydraulic levelers process a broad thickness range from 0.3 mm to 80 mm. They are engineered for high-strength steel (AHSS/UHSS), hot/cold-rolled carbon steel, stainless steel, aluminum, copper alloys, and armored plate.
Answer: Hydraulic levelers utilize dynamic servo-hydraulic pressure regulation with real-time feedback. This provides significantly higher tonnage force, precise stress elimination across the entire sheet, and automatic protection against overload—making them far superior for thick plates and high-tensile alloys.
Answer: Featuring a multi-roller strain-relief layout, our machines achieve ultra-tight flatness tolerances as high as 0.3 mm/m. This eliminates springback and internal tension, ensuring flawless downstream laser cutting, punching, and robotic bending.
Answer: Yes. Our machines support full CNC system compatibility, including automatic feeding tables, coil cut-to-length lines, and quick-changeover roller controls for seamless smart factory integration.
Answer: Absolutely. As a direct-factory manufacturer, we offer tailored engineering including custom roller layouts, specialized pressure profiles, custom machine dimensions, and automation software integration.
Answer: We provide comprehensive turnkey support worldwide, including pre-delivery testing, on-site commissioning, operator operational training, remote technical assistance, and lifetime spare parts availability.
